Overview

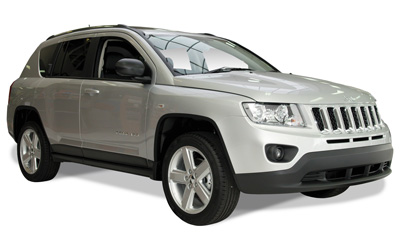

The 2012 Jeep Compass SPORT is a four-wheel drive 5d Sport Utility Vehicle that was released to the Australian market on 6th January 2012 classified as a MK. The Jeep Compass is regarded as a 5d sport utility vehicle built in USA with prices from a dealer as a used car starting at $28,500.
The Jeep Compass is a four-wheel drive 5 door with 5 seats, powered by a 2.4L 4 engine that has 125 kW of power (at 6000 rpm) and 220 Nm of torque (at 4500 rpm) via a Five-speed Manual. Jeep claims the Compass SPORT uses 8.5L/100km of unleaded in the combined city and highway cycle while putting out 201g of CO2. It has a 51L fuel tank, meaning it should be able to travel 600km per full tank.
The Jeep Compass measures 1718mm (67.6 inches) in height, 4448mm (175.1 inches) in length, 1810mm (71.3 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1429kg (3150.4 lbs) of unladen weight. The Compass SPORT comes standard with 215/60 R 96H front tyres and 215/60 R 96H rear tyres. It has a 36 month, 100,000kmkm warranty.
The 2012 Jeep Compass SPORT has a 209mm ground clearance with a 1500kg braked and 0kg unbraked towing capacity.
The Jeep Compass has received a 4 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2359 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | strut |
| Suspension Rear | multi-link |
| Steering Mechanism | POWER STEERING |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.5 |
|---|---|
| Fuel Urban (L/100km) | 10.9 |
| Fuel Extra Urban (L/100km) | 7.1 |
| Tank Size (L) | 51 |
| Fuel Type | unleaded |
| e10 Compatible | - |
| CO2 Combined | 201 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/60 R 96H |
| Tyre Rear | 215/60 R 96H |
| Front Rim Size | 6.5x17 |
| Rear Rim Size | 6.5x17 |
| Vehicle Height (mm) | 1718 |
|---|---|
| Vehicle Length (mm) | 4448 |
| Vehicle Width (mm) | 1810 |
| Ground Clearance (mm) | 209 |
| Wheelbase (mm) | 2635 |
| Turning Circle (m) | 10800 |
| Unladen Weight (kg) | 1429 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 1980 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 0 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | USA |
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 12000 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2012-05-31 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | - |
