Overview

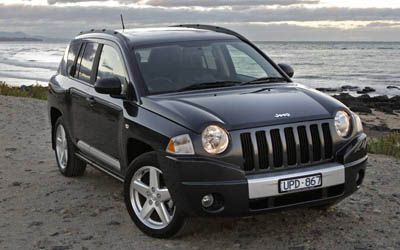

The 2007 Jeep Compass Limited is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th March 2007 classified as a MK. The Jeep Compass is regarded as a small SUV built in USA and when it was new had prices starting at $36,490.
This Jeep Compass is powered by a 2.4L 4-cylinder engine that has 125 kW of power (at 6000 rpm) and 220 Nm of torque (at 4500 rpm) via a Five-speed Manual transmission. Jeep claims the Compass Limited uses 8.7L/100km of Unleaded in the combined city and highway cycle while putting out 206g of CO2. It has a 51L fuel tank, meaning it should be able to travel 586km per full tank
The Jeep Compass measures 1740mm (68.5 inches) in height, 4405mm (173.4 inches) in length, 1810mm (71.3 inches) in width with a 2635mm (103.7 inches) wheelbase that brings about a total of 1460kg (3218.7 lbs) of unladen weight. The Compass Limited comes standard with 215/55 R18 95H ? front tyres and 215/55 R18 95H ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2007 Jeep Compass Limited has a 200mm ground clearance with a 1500kg braked and 0kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2359 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 6000 |
| Torque | 220Nm |
| Torque RPM | 4500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.7 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 51 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 206 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/55 R18 95H ? |
| Tyre Rear | 215/55 R18 95H ? |
| Front Rim Size | 7x18 |
| Rear Rim Size | 7x18 |
| Vehicle Height (mm) | 1740 |
|---|---|
| Vehicle Length (mm) | 4405 |
| Vehicle Width (mm) | 1810 |
| Ground Clearance (mm) | 200 |
| Wheelbase (mm) | 2635 |
| Turning Circle (m) | 10800 |
| Unladen Weight (kg) | 1460 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1980 |
| Track Front (mm) | 1520 |
| Track Rear (mm) | 1520 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | USA |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 12000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2008-09-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
