Overview

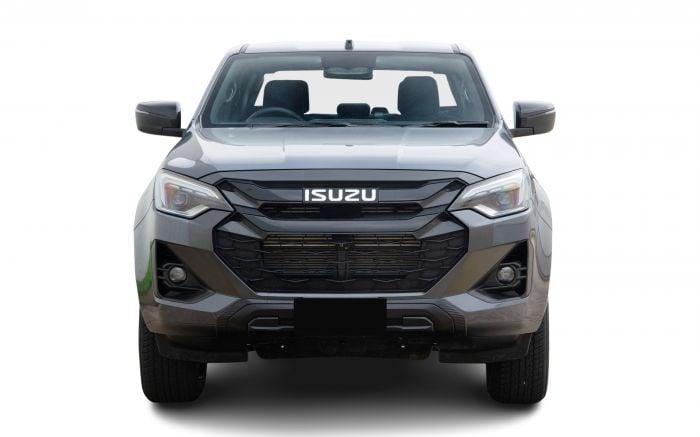

The 2025 Isuzu D-Max SX is a rear-wheel drive, Double Cab Chassis that was released to the Australian market on 2nd April 2024. The Isuzu D-Max is regarded as a Pick-up or Cab Chassis 4x2 built in Thailand with prices starting at $40,700 before on-road costs.
This Isuzu D-Max is powered by a 1.9L 4-cylinder engine that has 110 kW of power (at 3600 rpm) and 350 Nm of torque (at 1800 rpm) via a Six-speed Automatic transmission. Isuzu claims the D-Max SX uses 7L/100km of Diesel in the combined city and highway cycle while putting out 184g of CO2. It has a 76L fuel tank, meaning it should be able to travel 1086km per full tank
The Isuzu D-Max measures 1800mm (70.9 inches) in height, 5285mm (208.1 inches) in length, 1870mm (73.6 inches) in width with a 3125mm (123.0 inches) wheelbase that brings about a total of 1745kg (3847.1 lbs) of unladen weight. The D-Max SX comes standard with 255/65 R17 111S front tyres and 255/65 R17 111S rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 72 month, 150,000 km warranty.
The 2025 Isuzu D-Max SX has a 235mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
The Isuzu D-Max has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO |
|---|---|
| Size (cc) | 1898 |
| Size (L) | 1.9L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 110kW |
| Power RPM | 3600 |
| Torque | 350Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 7 |
|---|---|
| Fuel Urban (L/100km) | 7.9 |
| Fuel Extra Urban (L/100km) | 6.6 |
| Tank Size (L) | 76 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 184 |
| CO2 Urban | 208 |
| CO2 Extra Urban | 174 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/65 R17 111S |
| Tyre Rear | 255/65 R17 111S |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1800 |
|---|---|
| Vehicle Length (mm) | 5285 |
| Vehicle Width (mm) | 1870 |
| Ground Clearance (mm) | 235 |
| Wheelbase (mm) | 3125 |
| Turning Circle (m) | 12500 |
| Unladen Weight (kg) | 1745 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3000 |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1570 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 150 |
| Warranty Months | 72 |
| Discontinued Date | - |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU5 |
