Overview

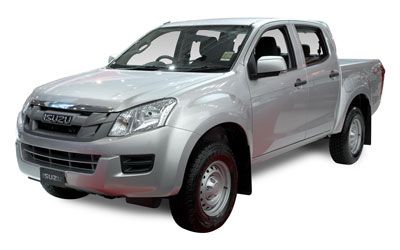

The 2015 Isuzu D-Max SX is a rear Double Cab Utility that was released to the Australian market on 213th August 2014 classified as a null. The Isuzu D-Max is regarded as a double cab utility built in Thailand with prices from a dealer as a used car starting at $33,400.
The Isuzu D-Max is a rear 4 door with 5 seats, powered by a 3.0L 4 engine that has 130 kW of power (at 3600 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual. Isuzu claims the D-Max SX uses 8.3L/100km of diesel in the combined city and highway cycle while putting out 216g of CO2. It has a 76L fuel tank, meaning it should be able to travel 916km per full tank.
The Isuzu D-Max measures 1690mm (66.5 inches) in height, 5190mm (204.3 inches) in length, 1775mm (69.9 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 1785kg (3935.2 lbs) of unladen weight. The D-Max SX comes standard with 215/70 R 104 front tyres and 215/70 R 104 rear tyres. It has a 60 month, 130,000kmkm warranty.
The 2015 Isuzu D-Max SX has a 190mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The Isuzu D-Max has received a 4 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2999 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3600 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | wishbone |
| Suspension Rear | beam |
| Steering Mechanism | HYDRAULIC POWER STEERING |
| Drive | rear |
| Fuel Combined (L/100km) | 8.3 |
|---|---|
| Fuel Urban (L/100km) | 10.8 |
| Fuel Extra Urban (L/100km) | 6.9 |
| Tank Size (L) | 76 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | 216 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 215/70 R 104 |
| Tyre Rear | 215/70 R 104 |
| Front Rim Size | 6.5x15 |
| Rear Rim Size | 6.5x15 |
| Vehicle Height (mm) | 1690 |
|---|---|
| Vehicle Length (mm) | 5190 |
| Vehicle Width (mm) | 1775 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 3095 |
| Turning Circle (m) | 12000 |
| Unladen Weight (kg) | 1785 |
| Gross Combined Weight (kg) | 5350 |
| Gross Vehicle Weight (kg) | 2850 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 130 |
| Warranty Months | 60 |
| Discontinued Date | 2014-11-30 |
| ANCAP Rating | 4 |
|---|---|
| Euro Air Pollution Standard | EU4 |
