Overview

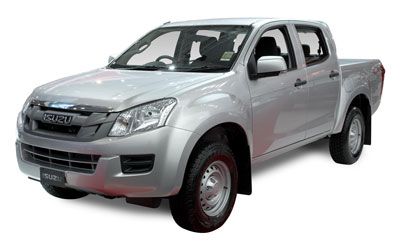

The 2015 Isuzu D-Max LS-U is a rear-wheel drive, Double Cab Utility that was released to the Australian market on 5th August 2014. The Isuzu D-Max is regarded as a Pick-up or Cab Chassis 4x2 built in Thailand and when it was new had prices starting at $38,800.
This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Isuzu claims the D-Max LS-U uses 8.5L/100km of Diesel in the combined city and highway cycle while putting out 220g of CO2. It has a 76L fuel tank, meaning it should be able to travel 894km per full tank
The Isuzu D-Max measures 1795mm (70.7 inches) in height, 5295mm (208.5 inches) in length, 1860mm (73.2 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 1908kg (4206.4 lbs) of unladen weight. The D-Max LS-U comes standard with 255/65 R17 front tyres and 255/65 R17 rear tyres. It has a 60 month, 130,000 km warranty.
The 2015 Isuzu D-Max LS-U has a 235mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The Isuzu D-Max has received a 5 star rating from ANCAP.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2999 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 130kW |
| Power RPM | 3600 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 8.5 |
|---|---|
| Fuel Urban (L/100km) | 11 |
| Fuel Extra Urban (L/100km) | 7 |
| Tank Size (L) | 76 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 220 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/65 R17 |
| Tyre Rear | 255/65 R17 |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1795 |
|---|---|
| Vehicle Length (mm) | 5295 |
| Vehicle Width (mm) | 1860 |
| Ground Clearance (mm) | 235 |
| Wheelbase (mm) | 3095 |
| Turning Circle (m) | 12600 |
| Unladen Weight (kg) | 1908 |
| Gross Combined Weight (kg) | 5350 |
| Gross Vehicle Weight (kg) | 2850 |
| Track Front (mm) | 1570 |
| Track Rear (mm) | 1570 |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 130 |
| Warranty Months | 60 |
| Discontinued Date | 2014-11-16 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU4 |
