Overview

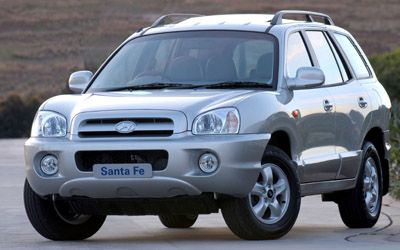

The 2005 Hyundai Santa Fe Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th September 2004. The Hyundai Santa Fe is regarded as a large SUV built in Korea and when it was new had prices starting at $33,990.
This Hyundai Santa Fe is powered by a 2.7L 6-cylinder engine that has 132 kW of power (at 6000 rpm) and 250 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Hyundai claims the Santa Fe Base uses 11.6L/100km of Unleaded in the combined city and highway cycle while putting out nullg of CO2. It has a 65L fuel tank, meaning it should be able to travel 560km per full tank
The Hyundai Santa Fe measures 1730mm (68.1 inches) in height, 4500mm (177.2 inches) in length, 1845mm (72.6 inches) in width with a 2620mm (103.1 inches) wheelbase that brings about a total of 1705kg (3758.9 lbs) of unladen weight. The Santa Fe Base comes standard with 225/70 R16 T front tyres and 225/70 R16 T rear tyres. It has a 60 month, 130,000 km warranty.
The 2005 Hyundai Santa Fe Base has a 223mm ground clearance with a 1800kg braked and 700kg unbraked towing capacity.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2656 |
| Size (L) | 2.7L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 132kW |
| Power RPM | 6000 |
| Torque | 250Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 11.6 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 65 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/70 R16 T |
| Tyre Rear | 225/70 R16 T |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1730 |
|---|---|
| Vehicle Length (mm) | 4500 |
| Vehicle Width (mm) | 1845 |
| Ground Clearance (mm) | 223 |
| Wheelbase (mm) | 2620 |
| Turning Circle (m) | 10800 |
| Unladen Weight (kg) | 1705 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2380 |
| Track Front (mm) | 1540 |
| Track Rear (mm) | 1540 |
| Towing Capacity Brake (kg) | 1800 |
| Towing Capacity Unbraked (kg) | 700 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 130 |
| Warranty Months | 60 |
| Discontinued Date | 2005-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
