Overview

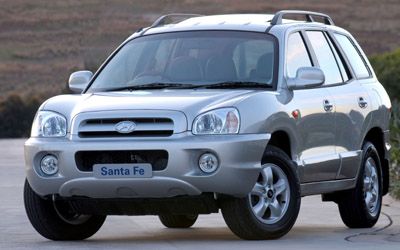

The 2005 Hyundai Santa Fe Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th September 2004. The Hyundai Santa Fe is regarded as a large SUV built in Korea and when it was new had prices starting at $33,990.
This Hyundai Santa Fe is powered by a 2.7L 6-cylinder engine that has 132 kW of power (at 6000 rpm) and 250 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. It has a 65L fuel tank
The Hyundai Santa Fe measures 1730mm (68.1 inches) in height, 4500mm (177.2 inches) in length, 1845mm (72.6 inches) in width with a 2620mm (103.1 inches) wheelbase that brings about a total of 1664kg (3668.5 lbs) of unladen weight. The Santa Fe Base comes standard with 225/70 R16 T front tyres and 225/70 R16 T rear tyres. It has a 60 month, 130,000 km warranty.
The 2005 Hyundai Santa Fe Base has a 207mm ground clearance with a 1800kg braked and 700kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2656 |
| Size (L) | 2.7L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 132kW |
| Power RPM | 6000 |
| Torque | 250Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 11 |
| Fuel Extra Urban (L/100km) | 7.6 |
| Tank Size (L) | 65 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/70 R16 T |
| Tyre Rear | 225/70 R16 T |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1730 |
|---|---|
| Vehicle Length (mm) | 4500 |
| Vehicle Width (mm) | 1845 |
| Ground Clearance (mm) | 207 |
| Wheelbase (mm) | 2620 |
| Turning Circle (m) | 11340 |
| Unladen Weight (kg) | 1664 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2380 |
| Track Front (mm) | 1540 |
| Track Rear (mm) | 1540 |
| Towing Capacity Brake (kg) | 1800 |
| Towing Capacity Unbraked (kg) | 700 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 130 |
| Warranty Months | 60 |
| Discontinued Date | 2005-03-04 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
