Overview

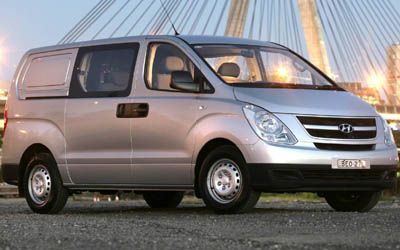

The 2008 Hyundai iLoad Base is a rear-wheel drive, 5-door Combi that was released to the Australian market on 2nd February 2008. The Hyundai iLoad is regarded as a Van under 3.5t built in Turkey and when it was new had prices starting at $36,490.
This Hyundai iLoad is powered by a 2.5L 4-cylinder engine that has 125 kW of power (at 3800 rpm) and 392 Nm of torque (at 2000 rpm) via a Five-speed Manual transmission. Hyundai claims the iLoad Base uses 8.5L/100km of Diesel in the combined city and highway cycle while putting out 225g of CO2. It has a 75L fuel tank, meaning it should be able to travel 882km per full tank
The Hyundai iLoad measures 1935mm (76.2 inches) in height, 5125mm (201.8 inches) in length, 1920mm (75.6 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 2156kg (4753.2 lbs) of unladen weight. The iLoad Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It has a 60 month, 160,000 km warranty.
The 2008 Hyundai iLoad Base has a 190mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2497 |
| Size (L) | 2.5L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 3800 |
| Torque | 392Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 8.5 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 225 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 215/70 R16 |
| Tyre Rear | 215/70 R16 |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 1935 |
|---|---|
| Vehicle Length (mm) | 5125 |
| Vehicle Width (mm) | 1920 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | 11220 |
| Unladen Weight (kg) | 2156 |
| Gross Combined Weight (kg) | 5230 |
| Gross Vehicle Weight (kg) | 3230 |
| Track Front (mm) | 1685 |
| Track Rear (mm) | 1660 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Turkey |
|---|---|
| Number of Doors | 5 |
| Seats | 6 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 160 |
| Warranty Months | 60 |
| Discontinued Date | 2008-06-02 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
