Overview

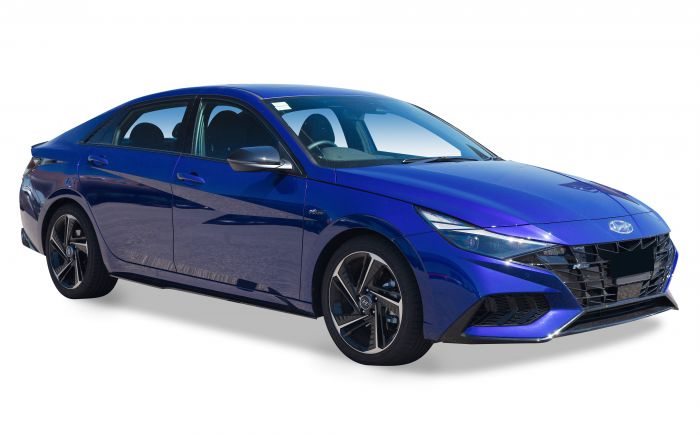

The 2023 Hyundai i30 N LINE is a front 4d Sedan that was released to the Australian market on 350th December 2022 classified as a CN7.V1. The Hyundai i30 is regarded as a 4d sedan built in Korea with prices from a dealer as a used car starting at $33,690.
The Hyundai i30 is a front 4 door with 5 seats, powered by a 1.6L 4 engine that has 150 kW of power (at 6000 rpm) and 265 Nm of torque (at 1500 rpm) via a Seven-speed Automatic. Hyundai claims the i30 N LINE uses 7.1L/100km of unleaded in the combined city and highway cycle while putting out 167g of CO2. It has a 47L fuel tank, meaning it should be able to travel 662km per full tank.
The Hyundai i30 measures 1430mm (56.3 inches) in height, 4675mm (184.1 inches) in length, 1825mm (71.9 inches) in width with a 2720mm (107.1 inches) wheelbase that brings about a total of 1312kg (2892.5 lbs) of unladen weight. The i30 N LINE comes standard with 235/40 ZR 95Y front tyres and 235/40 ZR 95Y rear tyres. It requires a service every 12 months or 10000,000 km, whichever comes first. It has a 60 month, unlimited kmkm warranty.
The 2023 Hyundai i30 N LINE has a 140mm ground clearance with a 1100kg braked and 610kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO PETROL DIRECT INJECTION |
|---|---|
| Size (cc) | 1591 |
| Size (L) | 1.6L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 150kW |
| Power RPM | 6000 |
| Torque | 265Nm |
| Torque RPM | 1500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 7 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | strut |
| Suspension Rear | multi-link |
| Steering Mechanism | POWER STEERING |
| Drive | front |
| Fuel Combined (L/100km) | 7.1 |
|---|---|
| Fuel Urban (L/100km) | 9.4 |
| Fuel Extra Urban (L/100km) | 5.9 |
| Tank Size (L) | 47 |
| Fuel Type | unleaded |
| e10 Compatible | - |
| CO2 Combined | 167 |
| CO2 Urban | 220 |
| CO2 Extra Urban | 137 |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/40 ZR 95Y |
| Tyre Rear | 235/40 ZR 95Y |
| Front Rim Size | 8x18 |
| Rear Rim Size | 8x18 |
| Vehicle Height (mm) | 1430 |
|---|---|
| Vehicle Length (mm) | 4675 |
| Vehicle Width (mm) | 1825 |
| Ground Clearance (mm) | 140 |
| Wheelbase (mm) | 2720 |
| Turning Circle (m) | 10800 |
| Unladen Weight (kg) | 1312 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 1850 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 1100 |
| Towing Capacity Unbraked (kg) | 610 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Korea |
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | 2023-03-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU5 |
