Overview

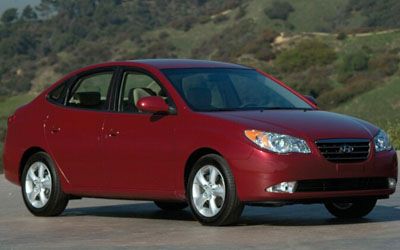

The 2009 Hyundai Elantra Elite S is a front-wheel drive, 4-door Sedan that was released to the Australian market on 2nd September 2007. The Hyundai Elantra is regarded as a small car built in Korea and when it was new had prices starting at $28,990.
This Hyundai Elantra is powered by a 2.0L 4-cylinder engine that has 105 kW of power (at 6000 rpm) and 186 Nm of torque (at 4600 rpm) via a Four-speed Automatic transmission. Hyundai claims the Elantra Elite S uses 7.8L/100km of Unleaded in the combined city and highway cycle while putting out 186g of CO2. It has a 53L fuel tank, meaning it should be able to travel 679km per full tank
The Hyundai Elantra measures 1490mm (58.7 inches) in height, 4505mm (177.4 inches) in length, 1775mm (69.9 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1309kg (2885.8 lbs) of unladen weight. The Elantra Elite S comes standard with 205/55 R16 H ? front tyres and 205/55 R16 H ? rear tyres. It has a 60 month, unlimited km warranty.
The 2009 Hyundai Elantra Elite S has a 160mm ground clearance with a 1200kg braked and 500kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1975 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 105kW |
| Power RPM | 6000 |
| Torque | 186Nm |
| Torque RPM | 4600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 7.8 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 53 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 186 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/55 R16 H ? |
| Tyre Rear | 205/55 R16 H ? |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1490 |
|---|---|
| Vehicle Length (mm) | 4505 |
| Vehicle Width (mm) | 1775 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2650 |
| Turning Circle (m) | 10340 |
| Unladen Weight (kg) | 1309 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1755 |
| Track Front (mm) | 1529 |
| Track Rear (mm) | 1527 |
| Towing Capacity Brake (kg) | 1200 |
| Towing Capacity Unbraked (kg) | 500 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 60 |
| Discontinued Date | 2009-01-02 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU3 |
