Overview

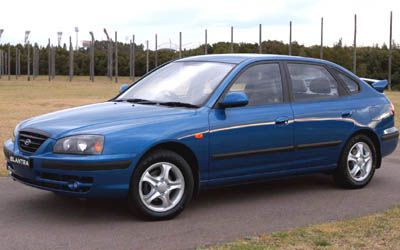

The 2005 Hyundai Elantra Base is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 3rd January 2003 classified as a FL. The Hyundai Elantra is regarded as a small car built in Korea and when it was new had prices starting at $18,490.
This Hyundai Elantra is powered by a 2.0L 4-cylinder engine that has 105 kW of power (at 6000 rpm) and 186 Nm of torque (at 4000 rpm) via a Five-speed Manual transmission. It has a 55L fuel tank
The Hyundai Elantra measures 1425mm (56.1 inches) in height, 4520mm (178.0 inches) in length, 1720mm (67.7 inches) in width with a 2610mm (102.8 inches) wheelbase that brings about a total of 1243kg (2740.3 lbs) of unladen weight. The Elantra Base comes standard with 185/65 R15 H front tyres and 185/65 R15 H rear tyres. It has a 60 month, 130,000 km warranty.
The 2005 Hyundai Elantra Base has a 160mm ground clearance with a 850kg braked and 453kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1975 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 105kW |
| Power RPM | 6000 |
| Torque | 186Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 55 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 175 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 185/65 R15 H |
| Tyre Rear | 185/65 R15 H |
| Front Rim Size | 5.5x15 |
| Rear Rim Size | 5.5x15 |
| Vehicle Height (mm) | 1425 |
|---|---|
| Vehicle Length (mm) | 4520 |
| Vehicle Width (mm) | 1720 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2610 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1243 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1800 |
| Track Front (mm) | 1485 |
| Track Rear (mm) | 1475 |
| Towing Capacity Brake (kg) | 850 |
| Towing Capacity Unbraked (kg) | 453 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 130 |
| Warranty Months | 60 |
| Discontinued Date | 2005-02-03 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
