Overview

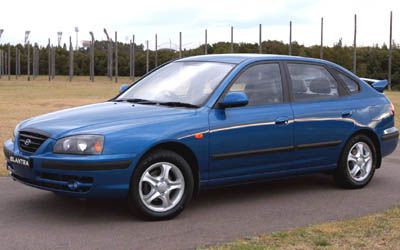

The 2004 Hyundai Elantra HVT is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 4th January 1970 classified as a FL. The Hyundai Elantra is regarded as a small car built in Korea and when it was new had prices starting at $20,980.
This Hyundai Elantra is powered by a 2.0L 4-cylinder engine that has 105 kW of power (at 6000 rpm) and 186 Nm of torque (at 4000 rpm) via a Four-speed Automatic transmission. Hyundai claims the Elantra HVT uses 9.1L/100km of Unleaded in the combined city and highway cycle while putting out nullg of CO2. It has a 55L fuel tank, meaning it should be able to travel 604km per full tank
The Hyundai Elantra measures 1425mm (56.1 inches) in height, 4520mm (178.0 inches) in length, 1720mm (67.7 inches) in width with a 2610mm (102.8 inches) wheelbase that brings about a total of 1269kg (2797.7 lbs) of unladen weight. The Elantra HVT comes standard with 185/65 R15 H front tyres and 185/65 R15 H rear tyres. It has a 60 month, 130,000 km warranty.
The 2004 Hyundai Elantra HVT has a 160mm ground clearance with a 850kg braked and 453kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1975 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 105kW |
| Power RPM | 6000 |
| Torque | 186Nm |
| Torque RPM | 4000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 4 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 9.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 55 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 185/65 R15 H |
| Tyre Rear | 185/65 R15 H |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 1425 |
|---|---|
| Vehicle Length (mm) | 4520 |
| Vehicle Width (mm) | 1720 |
| Ground Clearance (mm) | 160 |
| Wheelbase (mm) | 2610 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1269 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1800 |
| Track Front (mm) | 1485 |
| Track Rear (mm) | 1475 |
| Towing Capacity Brake (kg) | 850 |
| Towing Capacity Unbraked (kg) | 453 |
| Country Of Origin | Korea |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 130 |
| Warranty Months | 60 |
| Discontinued Date | 2004-06-01 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
