Overview

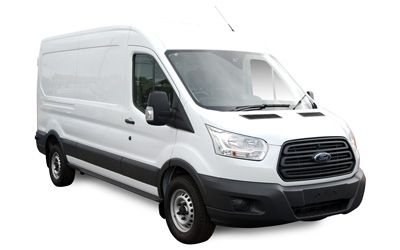

The 2018 Ford Transit Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 2nd May 2018 classified as a VO. The Ford Transit is regarded as a Van over 3.5t built in Turkey and when it was new had prices starting at $47,680.
This Ford Transit is powered by a 2.2L 4-cylinder engine that has 114 kW of power (at 3500 rpm) and 385 Nm of torque (at 1600 rpm) via a Six-speed Manual transmission. It has a 100L fuel tank
The Ford Transit measures 2547mm (100.3 inches) in height, 5981mm (235.5 inches) in length, 2094mm (82.4 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2393kg (5275.7 lbs) of unladen weight. The Transit Base comes standard with 235/65 R16 front tyres and 235/65 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2198 |
| Size (L) | 2.2L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 114kW |
| Power RPM | 3500 |
| Torque | 385Nm |
| Torque RPM | 1600 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 100 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/65 R16 |
| Tyre Rear | 235/65 R16 |
| Front Rim Size | 6.5x16 |
| Rear Rim Size | 6.5x16 |
| Vehicle Height (mm) | 2547 |
|---|---|
| Vehicle Length (mm) | 5981 |
| Vehicle Width (mm) | 2094 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3750 |
| Turning Circle (m) | 13300 |
| Unladen Weight (kg) | 2393 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3550 |
| Track Front (mm) | 1732 |
| Track Rear (mm) | 1743 |
| Towing Capacity Brake (kg) | 2750 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Turkey |
|---|---|
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | 15000 |
| Service Interval Months | 12 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2018-05-13 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU5 |
