Overview

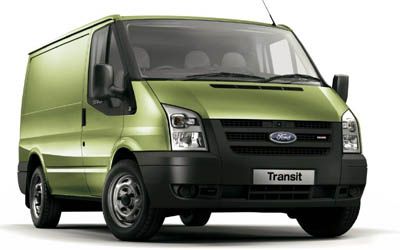

The 2009 Ford Transit Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 1st March 2009 classified as a VM. The Ford Transit is regarded as a Van over 3.5t built in Great Britain and when it was new had prices starting at $47,990.
This Ford Transit is powered by a 2.4L 4-cylinder engine that has 103 kW of power (at 3500 rpm) and 375 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 80L fuel tank
The Ford Transit measures 2622mm (103.2 inches) in height, 6403mm (252.1 inches) in length, 1974mm (77.7 inches) in width with a 3750mm (147.6 inches) wheelbase that brings about a total of 2293kg (5055.2 lbs) of unladen weight. The Transit Base comes standard with 195/75 R16 ? front tyres and 195/75 R16 ? rear tyres. It has a 36 month, 100,000 km warranty.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2402 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 103kW |
| Power RPM | 3500 |
| Torque | 375Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/75 R16 ? |
| Tyre Rear | 195/75 R16 ? |
| Front Rim Size | 5x16 |
| Rear Rim Size | 5x16 |
| Vehicle Height (mm) | 2622 |
|---|---|
| Vehicle Length (mm) | 6403 |
| Vehicle Width (mm) | 1974 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3750 |
| Turning Circle (m) | 13900 |
| Unladen Weight (kg) | 2293 |
| Gross Combined Weight (kg) | 6500 |
| Gross Vehicle Weight (kg) | 4490 |
| Track Front (mm) | - |
| Track Rear (mm) | - |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Great Britain |
|---|---|
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2010-01-03 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
