Overview

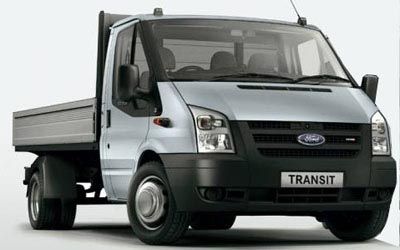

The 2006 Ford Transit Base is a rear-wheel drive, Single Cab Chassis that was released to the Australian market on 4th August 2006 classified as a VM. The Ford Transit is regarded as a Van over 3.5t built in Great Britain and when it was new had prices starting at $39,590.
This Ford Transit is powered by a 2.4L 4-cylinder engine that has 103 kW of power (at 3500 rpm) and 375 Nm of torque (at 2000 rpm) via a Six-speed Manual transmission. It has a 80L fuel tank
The Ford Transit measures 2030mm (79.9 inches) in height, 6319mm (248.8 inches) in length, 1974mm (77.7 inches) in width with a 3954mm (155.7 inches) wheelbase that brings about a total of 1895kg (4177.8 lbs) of unladen weight. The Transit Base comes standard with 195/75 R16 ? front tyres and 195/75 R16 ? rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2402 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 103kW |
| Power RPM | 3500 |
| Torque | 375Nm |
| Torque RPM | 2000 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 195/75 R16 ? |
| Tyre Rear | 195/75 R16 ? |
| Front Rim Size | 5x16 |
| Rear Rim Size | 5x16 |
| Vehicle Height (mm) | 2030 |
|---|---|
| Vehicle Length (mm) | 6319 |
| Vehicle Width (mm) | 1974 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3954 |
| Turning Circle (m) | 13900 |
| Unladen Weight (kg) | 1895 |
| Gross Combined Weight (kg) | 6500 |
| Gross Vehicle Weight (kg) | 4250 |
| Track Front (mm) | - |
| Track Rear (mm) | - |
| Towing Capacity Brake (kg) | 2450 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Great Britain |
|---|---|
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2007-05-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
