Overview

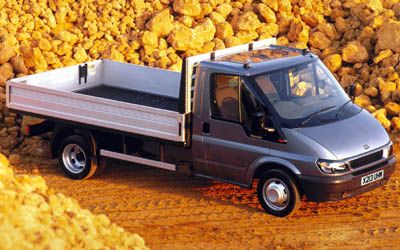

The 2004 Ford Transit Base is a rear-wheel drive, Single Cab Chassis that was released to the Australian market on 5th April 2004 classified as a VJ. The Ford Transit is regarded as a Van over 3.5t built in Great Britain and when it was new had prices starting at $36,900.
This Ford Transit is powered by a 2.4L 4-cylinder engine that has 85 kW of power (at 3800 rpm) and 285 Nm of torque (at 2300 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The Ford Transit measures 2037mm (80.2 inches) in height, 5902mm (232.4 inches) in length, 1974mm (77.7 inches) in width with a 3954mm (155.7 inches) wheelbase that brings about a total of 1793kg (3952.9 lbs) of unladen weight. The Transit Base comes standard with 185/75 R16 front tyres and 185/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
Type | TURBO DIESEL DIRECT INJECTION |
---|---|
Size (cc) | 2402 |
Size (L) | 2.4L |
Cylinders | 4 |
Camshaft | Dual Overhead Cam |
Valves/Ports per Cylinder | 16 |
Power | 85kW |
Power RPM | 3800 |
Torque | 285Nm |
Torque RPM | 2300 |
Bore Stroke | - |
Compression Ratio | - |
Transmission | 5 SP MANUAL |
---|---|
Final Gear Ratio | - |
Suspension Front | Strut |
Suspension Rear | Beam |
Steering Mechanism | - |
Drive | rear |
Fuel Combined (L/100km) | - |
---|---|
Fuel Urban (L/100km) | - |
Fuel Extra Urban (L/100km) | - |
Tank Size (L) | 80 |
Fuel Type | Diesel |
e10 Compatible | - |
CO2 Combined | - |
CO2 Urban | - |
CO2 Extra Urban | - |
Brake Front | DISC - VENTILATED |
---|---|
Brake Rear | DRUM |
Tyre Front | 185/75 R16 |
Tyre Rear | 185/75 R16 |
Front Rim Size | 5x16 |
Rear Rim Size | 5x16 |
Vehicle Height (mm) | 2037 |
---|---|
Vehicle Length (mm) | 5902 |
Vehicle Width (mm) | 1974 |
Ground Clearance (mm) | - |
Wheelbase (mm) | 3954 |
Turning Circle (m) | 13900 |
Unladen Weight (kg) | 1793 |
Gross Combined Weight (kg) | - |
Gross Vehicle Weight (kg) | 4250 |
Track Front (mm) | 1700 |
Track Rear (mm) | 1645 |
Towing Capacity Brake (kg) | 2400 |
Towing Capacity Unbraked (kg) | 750 |
Country Of Origin | Great Britain |
---|---|
Number of Doors | 2 |
Seats | 2 |
Service Interval KMs | - |
Service Interval Months | - |
VIN Location | - |
VIN Number | - |
Warranty KMs | 100 |
Warranty Months | 36 |
Discontinued Date | 2004-11-30 |
ANCAP Rating | - |
---|---|
Euro Air Pollution Standard | - |
