Overview

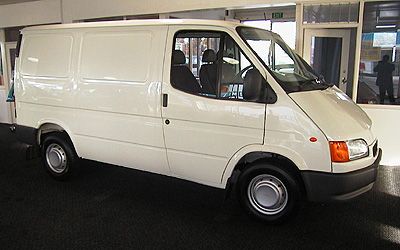

The 1997 Ford Transit Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. and when it was new had prices starting at $26,990.
This Ford Transit is powered by a 2.0L 4-cylinder engine that has 85 kW of power (at 4000 rpm) and 168 Nm of torque (at 2500 rpm) via a Five-speed Manual transmission. It has a 68L fuel tank
The Ford Transit measures 2043mm (80.4 inches) in height, 4616mm (181.7 inches) in length, 1974mm (77.7 inches) in width with a 2835mm (111.6 inches) wheelbase that brings about a total of 1675kg (3692.7 lbs) of unladen weight. The Transit Base comes standard with 195/70 R14 S front tyres and 195/70 R14 S rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
Type | MULTI-POINT INJECTION |
---|---|
Size (cc) | 1998 |
Size (L) | 2.0L |
Cylinders | 4 |
Camshaft | Dual Overhead Cam |
Valves/Ports per Cylinder | 8 |
Power | 85kW |
Power RPM | 4000 |
Torque | 168Nm |
Torque RPM | 2500 |
Bore Stroke | - |
Compression Ratio | - |
Transmission | 5 SP MANUAL |
---|---|
Final Gear Ratio | - |
Suspension Front | Strut |
Suspension Rear | Beam |
Steering Mechanism | - |
Drive | rear |
Fuel Combined (L/100km) | - |
---|---|
Fuel Urban (L/100km) | - |
Fuel Extra Urban (L/100km) | - |
Tank Size (L) | 68 |
Fuel Type | Unleaded |
e10 Compatible | - |
CO2 Combined | - |
CO2 Urban | - |
CO2 Extra Urban | - |
Brake Front | DISC - VENTILATED |
---|---|
Brake Rear | DRUM |
Tyre Front | 195/70 R14 S |
Tyre Rear | 195/70 R14 S |
Front Rim Size | 6x14 |
Rear Rim Size | 6x14 |
Vehicle Height (mm) | 2043 |
---|---|
Vehicle Length (mm) | 4616 |
Vehicle Width (mm) | 1974 |
Ground Clearance (mm) | - |
Wheelbase (mm) | 2835 |
Turning Circle (m) | 11300 |
Unladen Weight (kg) | 1675 |
Gross Combined Weight (kg) | - |
Gross Vehicle Weight (kg) | 3200 |
Track Front (mm) | 1692 |
Track Rear (mm) | 1700 |
Towing Capacity Brake (kg) | - |
Towing Capacity Unbraked (kg) | - |
Country Of Origin | - |
---|---|
Number of Doors | 4 |
Seats | 3 |
Service Interval KMs | - |
Service Interval Months | - |
VIN Location | - |
VIN Number | - |
Warranty KMs | 100 |
Warranty Months | 36 |
Discontinued Date | 1997-01-22 |
ANCAP Rating | - |
---|---|
Euro Air Pollution Standard | - |
