Overview

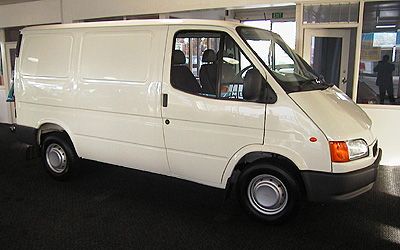

The 1997 Ford Transit Base is a rear-wheel drive, 4-door Panel Van that was released to the Australian market on 4th January 1970. The Ford Transit is regarded as a Van over 3.5t built in Great Britain and when it was new had prices starting at $28,990.
This Ford Transit is powered by a 2.0L 4-cylinder engine that has 85 kW of power (at 5000 rpm) and 170 Nm of torque (at 2700 rpm) via a Five-speed Manual transmission. It has a 68L fuel tank
The Ford Transit measures 2662mm (104.8 inches) in height, 5368mm (211.3 inches) in length, 1974mm (77.7 inches) in width with a 3570mm (140.6 inches) wheelbase that brings about a total of 1690kg (3725.8 lbs) of unladen weight. The Transit Base comes standard with 225/70 R15 S front tyres and 225/70 R15 S rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
Type | MULTI-POINT INJECTION |
---|---|
Size (cc) | 1998 |
Size (L) | 2.0L |
Cylinders | 4 |
Camshaft | Dual Overhead Cam |
Valves/Ports per Cylinder | 8 |
Power | 85kW |
Power RPM | 5000 |
Torque | 170Nm |
Torque RPM | 2700 |
Bore Stroke | - |
Compression Ratio | - |
Transmission | 5 SP MANUAL |
---|---|
Final Gear Ratio | - |
Suspension Front | Strut |
Suspension Rear | Beam |
Steering Mechanism | - |
Drive | rear |
Fuel Combined (L/100km) | - |
---|---|
Fuel Urban (L/100km) | - |
Fuel Extra Urban (L/100km) | - |
Tank Size (L) | 68 |
Fuel Type | Unleaded |
e10 Compatible | - |
CO2 Combined | - |
CO2 Urban | - |
CO2 Extra Urban | - |
Brake Front | DISC - VENTILATED |
---|---|
Brake Rear | DRUM |
Tyre Front | 225/70 R15 S |
Tyre Rear | 225/70 R15 S |
Front Rim Size | 6x15 |
Rear Rim Size | 6x15 |
Vehicle Height (mm) | 2662 |
---|---|
Vehicle Length (mm) | 5368 |
Vehicle Width (mm) | 1974 |
Ground Clearance (mm) | - |
Wheelbase (mm) | 3570 |
Turning Circle (m) | 13800 |
Unladen Weight (kg) | 1690 |
Gross Combined Weight (kg) | - |
Gross Vehicle Weight (kg) | 3500 |
Track Front (mm) | 1700 |
Track Rear (mm) | 1700 |
Towing Capacity Brake (kg) | 2000 |
Towing Capacity Unbraked (kg) | 750 |
Country Of Origin | Great Britain |
---|---|
Number of Doors | 4 |
Seats | 3 |
Service Interval KMs | - |
Service Interval Months | - |
VIN Location | - |
VIN Number | - |
Warranty KMs | 100 |
Warranty Months | 36 |
Discontinued Date | 1998-01-31 |
ANCAP Rating | - |
---|---|
Euro Air Pollution Standard | - |
