Overview

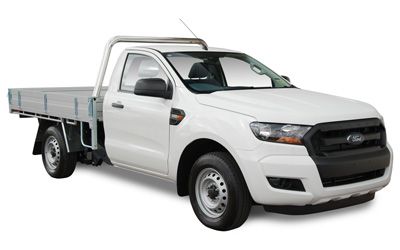

The 2015 Ford Ranger XL PLUS is a four-wheel drive Single Cab Chassis that was released to the Australian market on 1st January 1970 classified as a PX MKII. The Ford Ranger is regarded as a single cab chassis built in Thailand with prices from a dealer as a used car starting at $0.
The Ford Ranger is a four-wheel drive 2 door with 3 seats, powered by a 3.2L 5 engine that has 147 kW of power (at 3000 rpm) and 470 Nm of torque (at 1750 rpm) via a Six-speed Automatic. It has a 80L fuel tank.
The Ford Ranger measures 1800mm (70.9 inches) in height, 5110mm (201.2 inches) in length, 1850mm (72.8 inches) in width with a 3220mm (126.8 inches) wheelbase that brings about a total of 1754kg (3866.9 lbs) of unladen weight. The Ranger XL PLUS comes standard with 265/65 R 112 front tyres and 265/65 R 112 rear tyres. It has a 36 month, 100,000kmkm warranty.
The 2015 Ford Ranger XL PLUS has a 232mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
The Ford Ranger has received a 5 star rating from ANCAP.
Pros
- Punchy and refined V6 diesel
- Surprisingly fuel efficient
- Benchmark driving experience
Cons
- Lacking some wow factor
- Expensive compared with more enticing Sport grade
- No wireless phone charger
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 3198 |
| Size (L) | 3.2L |
| Cylinders | 5 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 20 |
| Power | 147kW |
| Power RPM | 3000 |
| Torque | 470Nm |
| Torque RPM | 1750 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | wishbone |
| Suspension Rear | beam |
| Steering Mechanism | ELECTRIC POWER STEERING |
| Drive | 4x4 |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 80 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 265/65 R 112 |
| Tyre Rear | 265/65 R 112 |
| Front Rim Size | 7.5x17 |
| Rear Rim Size | 7.5x17 |
| Vehicle Height (mm) | 1800 |
|---|---|
| Vehicle Length (mm) | 5110 |
| Vehicle Width (mm) | 1850 |
| Ground Clearance (mm) | 232 |
| Wheelbase (mm) | 3220 |
| Turning Circle (m) | 12700 |
| Unladen Weight (kg) | 1754 |
| Gross Combined Weight (kg) | 6000 |
| Gross Vehicle Weight (kg) | 3200 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 3500 |
| Towing Capacity Unbraked (kg) | 750 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Thailand |
| Number of Doors | 2 |
| Seats | 3 |
| Service Interval KMs | 15000 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2015-06-25 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | - |
