Overview

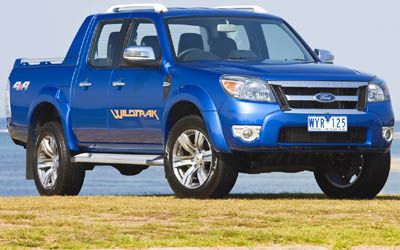

The 2010 Ford Ranger Wildtrak is a four-wheel drive, Double Cab Utility that was released to the Australian market on 1st January 2010 classified as a PK. The Ford Ranger is regarded as a Pick-up or Cab Chassis 4x4 built in Thailand and when it was new had prices starting at $51,390.
This Ford Ranger is powered by a 3.0L 4-cylinder engine that has 115 kW of power (at 3200 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Automatic transmission. Ford claims the Ranger Wildtrak uses 10.2L/100km of Diesel in the combined city and highway cycle while putting out 271g of CO2. It has a 70L fuel tank, meaning it should be able to travel 686km per full tank
The Ford Ranger measures 1762mm (69.4 inches) in height, 5179mm (203.9 inches) in length, 1788mm (70.4 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 2005kg (4420.3 lbs) of unladen weight. The Ranger Wildtrak comes standard with 255/60 R18 front tyres and 255/60 R18 rear tyres. It has a 84 month, 200,000 km warranty.
The 2010 Ford Ranger Wildtrak has a 214mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
The Ford Ranger has received a 3 star rating from ANCAP.
Pros
- Punchy and refined V6 diesel
- Surprisingly fuel efficient
- Benchmark driving experience
Cons
- Lacking some wow factor
- Expensive compared with more enticing Sport grade
- No wireless phone charger
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2953 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 115kW |
| Power RPM | 3200 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 10.2 |
|---|---|
| Fuel Urban (L/100km) | 12.6 |
| Fuel Extra Urban (L/100km) | 8.9 |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 271 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 255/60 R18 |
| Tyre Rear | 255/60 R18 |
| Front Rim Size | 7.5x18 |
| Rear Rim Size | 7.5x18 |
| Vehicle Height (mm) | 1762 |
|---|---|
| Vehicle Length (mm) | 5179 |
| Vehicle Width (mm) | 1788 |
| Ground Clearance (mm) | 214 |
| Wheelbase (mm) | 3000 |
| Turning Circle (m) | 13000 |
| Unladen Weight (kg) | 2005 |
| Gross Combined Weight (kg) | 4875 |
| Gross Vehicle Weight (kg) | 3021 |
| Track Front (mm) | 1485 |
| Track Rear (mm) | 1480 |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 200 |
| Warranty Months | 84 |
| Discontinued Date | 2011-09-04 |
| ANCAP Rating | 3 |
|---|---|
| Euro Air Pollution Standard | - |
