Overview

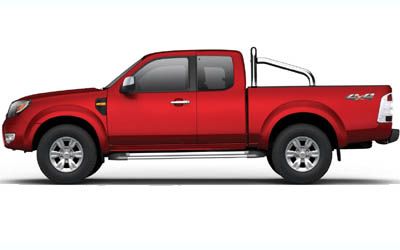

The 2009 Ford Ranger XLT is a four-wheel drive, Extended Utility that was released to the Australian market on 1st January 2009 classified as a PK. The Ford Ranger is regarded as a Pick-up or Cab Chassis 4x4 built in Thailand and when it was new had prices starting at $43,990.
This Ford Ranger is powered by a 3.0L 4-cylinder engine that has 115 kW of power (at 3200 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Ford claims the Ranger XLT uses 9.2L/100km of Diesel in the combined city and highway cycle while putting out 243g of CO2. It has a 70L fuel tank, meaning it should be able to travel 761km per full tank
The Ford Ranger measures 1750mm (68.9 inches) in height, 5179mm (203.9 inches) in length, 1788mm (70.4 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1957kg (4314.4 lbs) of unladen weight. The Ranger XLT comes standard with 245/70 R16 ? front tyres and 245/70 R16 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Ford Ranger XLT has a 214mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Pros
- Punchy and refined V6 diesel
- Surprisingly fuel efficient
- Benchmark driving experience
Cons
- Lacking some wow factor
- Expensive compared with more enticing Sport grade
- No wireless phone charger
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2953 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 115kW |
| Power RPM | 3200 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 9.2 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 243 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 245/70 R16 ? |
| Tyre Rear | 245/70 R16 ? |
| Front Rim Size | 7x16 |
| Rear Rim Size | 7x16 |
| Vehicle Height (mm) | 1750 |
|---|---|
| Vehicle Length (mm) | 5179 |
| Vehicle Width (mm) | 1788 |
| Ground Clearance (mm) | 214 |
| Wheelbase (mm) | 3000 |
| Turning Circle (m) | 12600 |
| Unladen Weight (kg) | 1957 |
| Gross Combined Weight (kg) | 5500 |
| Gross Vehicle Weight (kg) | 3032 |
| Track Front (mm) | 1475 |
| Track Rear (mm) | 1470 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 4 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
