Overview

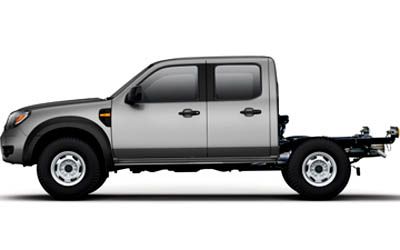

The 2009 Ford Ranger XL is a rear-wheel drive, Double Cab Chassis that was released to the Australian market on 1st January 2009 classified as a PK. The Ford Ranger is regarded as a Pick-up or Cab Chassis 4x2 built in Thailand and when it was new had prices starting at $35,390.
This Ford Ranger is powered by a 3.0L 4-cylinder engine that has 115 kW of power (at 3200 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Automatic transmission. Ford claims the Ranger XL uses 10.4L/100km of Diesel in the combined city and highway cycle while putting out 274g of CO2. It has a 70L fuel tank, meaning it should be able to travel 673km per full tank
The Ford Ranger measures 1755mm (69.1 inches) in height, 4848mm (190.9 inches) in length, 1788mm (70.4 inches) in width with a 3000mm (118.1 inches) wheelbase that brings about a total of 1800kg (3968.3 lbs) of unladen weight. The Ranger XL comes standard with 235/75 R15 ? front tyres and 235/75 R15 ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Ford Ranger XL has a 207mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Pros
- Punchy and refined V6 diesel
- Surprisingly fuel efficient
- Benchmark driving experience
Cons
- Lacking some wow factor
- Expensive compared with more enticing Sport grade
- No wireless phone charger
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2953 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 115kW |
| Power RPM | 3200 |
| Torque | 380Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Wishbone |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | rear |
| Fuel Combined (L/100km) | 10.4 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 274 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DRUM |
| Tyre Front | 235/75 R15 ? |
| Tyre Rear | 235/75 R15 ? |
| Front Rim Size | 6.5x15 |
| Rear Rim Size | 6.5x15 |
| Vehicle Height (mm) | 1755 |
|---|---|
| Vehicle Length (mm) | 4848 |
| Vehicle Width (mm) | 1788 |
| Ground Clearance (mm) | 207 |
| Wheelbase (mm) | 3000 |
| Turning Circle (m) | 12600 |
| Unladen Weight (kg) | 1800 |
| Gross Combined Weight (kg) | 4875 |
| Gross Vehicle Weight (kg) | 2914 |
| Track Front (mm) | 1445 |
| Track Rear (mm) | 1440 |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-06-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
