Overview

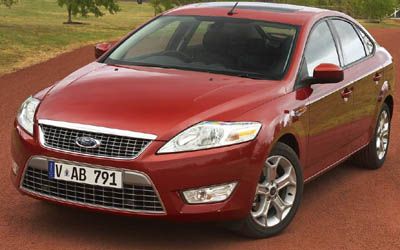

The 2009 Ford Mondeo Base is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 4th October 2007 classified as a MA. The Ford Mondeo is regarded as a medium-sized car built in Belgium and when it was new had prices starting at $37,990.
This Ford Mondeo is powered by a 2.0L 4-cylinder engine that has 96 kW of power (at 4000 rpm) and 320 Nm of torque (at 1750 rpm) via a Six-speed Automatic transmission. Ford claims the Mondeo Base uses 7.3L/100km of Diesel in the combined city and highway cycle while putting out 193g of CO2. It has a 70L fuel tank, meaning it should be able to travel 959km per full tank
The Ford Mondeo measures 1500mm (59.1 inches) in height, 4778mm (188.1 inches) in length, 1886mm (74.3 inches) in width with a 2850mm (112.2 inches) wheelbase that brings about a total of 1604kg (3536.2 lbs) of unladen weight. The Mondeo Base comes standard with 235/45 ZR17 97W ? front tyres and 235/45 ZR17 97W ? rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Ford Mondeo Base has a 103mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 1997 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 96kW |
| Power RPM | 4000 |
| Torque | 320Nm |
| Torque RPM | 1750 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 7.3 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 70 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 193 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 235/45 ZR17 97W ? |
| Tyre Rear | 235/45 ZR17 97W ? |
| Front Rim Size | 7.5x17 |
| Rear Rim Size | 7.5x17 |
| Vehicle Height (mm) | 1500 |
|---|---|
| Vehicle Length (mm) | 4778 |
| Vehicle Width (mm) | 1886 |
| Ground Clearance (mm) | 103 |
| Wheelbase (mm) | 2850 |
| Turning Circle (m) | 11450 |
| Unladen Weight (kg) | 1604 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2190 |
| Track Front (mm) | 1579 |
| Track Rear (mm) | 1595 |
| Towing Capacity Brake (kg) | 1600 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Belgium |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-01-04 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU4 |
