Overview

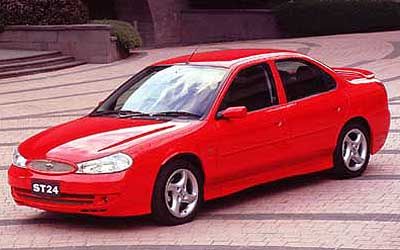

The 2002 Ford Mondeo ST24 is a front-wheel drive, 4-door Sedan that was released to the Australian market on 6th July 2000 classified as a HE. The Ford Mondeo is regarded as a medium-sized car built in Belgium and when it was new had prices starting at $34,730.
This Ford Mondeo is powered by a 2.5L 6-cylinder engine that has 125 kW of power (at 6250 rpm) and 220 Nm of torque (at 4250 rpm) via a Five-speed Manual transmission. It has a 62L fuel tank
The Ford Mondeo measures 1372mm (54.0 inches) in height, 4556mm (179.4 inches) in length, 1749mm (68.9 inches) in width with a 2704mm (106.5 inches) wheelbase that brings about a total of 1368kg (3015.9 lbs) of unladen weight. The Mondeo ST24 comes standard with 205/50 ZR16 W front tyres and 205/50 ZR16 W rear tyres. It has a 36 month, 100,000 km warranty.
The 2002 Ford Mondeo ST24 has a 100mm ground clearance with a 1500kg braked and 0kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 2544 |
| Size (L) | 2.5L |
| Cylinders | 6 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 24 |
| Power | 125kW |
| Power RPM | 6250 |
| Torque | 220Nm |
| Torque RPM | 4250 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 10 |
| Fuel Extra Urban (L/100km) | 6.4 |
| Tank Size (L) | 62 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/50 ZR16 W |
| Tyre Rear | 205/50 ZR16 W |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 1372 |
|---|---|
| Vehicle Length (mm) | 4556 |
| Vehicle Width (mm) | 1749 |
| Ground Clearance (mm) | 100 |
| Wheelbase (mm) | 2704 |
| Turning Circle (m) | 10350 |
| Unladen Weight (kg) | 1368 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1503 |
| Track Rear (mm) | 1487 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | Belgium |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2002-12-09 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
