Overview

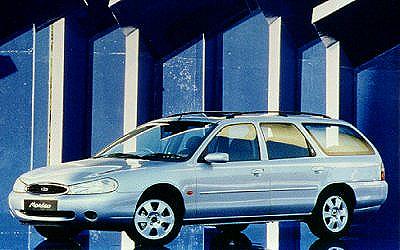

The 1997 Ford Mondeo LX is a front-wheel drive, 5-door Station Wagon that was released to the Australian market on 4th January 1970. The Ford Mondeo is regarded as a medium-sized car built in Belgium and when it was new had prices starting at $29,130.
This Ford Mondeo is powered by a 2.0L 4-cylinder engine that has 94 kW of power (at 5700 rpm) and 170 Nm of torque (at 3700 rpm) via a Five-speed Manual transmission. It has a 62L fuel tank
The Ford Mondeo measures 1463mm (57.6 inches) in height, 4671mm (183.9 inches) in length, 1750mm (68.9 inches) in width with a 2704mm (106.5 inches) wheelbase that brings about a total of 1319kg (2907.9 lbs) of unladen weight. The Mondeo LX comes standard with 185/65 R14 H front tyres and 185/65 R14 H rear tyres. It has a 24 month, 50,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1988 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 94kW |
| Power RPM | 5700 |
| Torque | 170Nm |
| Torque RPM | 3700 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 10 |
| Fuel Extra Urban (L/100km) | 6.2 |
| Tank Size (L) | 62 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC - VENTILATED |
| Tyre Front | 185/65 R14 H |
| Tyre Rear | 185/65 R14 H |
| Front Rim Size | 5.5x14 |
| Rear Rim Size | 5.5x14 |
| Vehicle Height (mm) | 1463 |
|---|---|
| Vehicle Length (mm) | 4671 |
| Vehicle Width (mm) | 1750 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2704 |
| Turning Circle (m) | 10350 |
| Unladen Weight (kg) | 1319 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | - |
| Track Front (mm) | 1503 |
| Track Rear (mm) | 1504 |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | Belgium |
|---|---|
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 50 |
| Warranty Months | 24 |
| Discontinued Date | 1997-01-14 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | ADR 79/01 |
