Overview

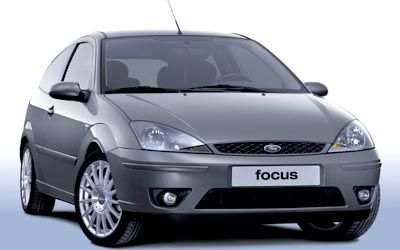

The 2005 Ford Focus ST 170 is a front-wheel drive, 3-door Hatchback that was released to the Australian market on 4th April 2003. The Ford Focus is regarded as a small car built in Germany and when it was new had prices starting at $37,000.
This Ford Focus is powered by a 2.0L 4-cylinder engine that has 127 kW of power (at 7000 rpm) and 196 Nm of torque (at 5500 rpm) via a Six-speed Manual transmission. Ford claims the Focus ST 170 uses 8.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 212g of CO2. It has a 55L fuel tank, meaning it should be able to travel 625km per full tank
The Ford Focus measures 1430mm (56.3 inches) in height, 4152mm (163.5 inches) in length, 1699mm (66.9 inches) in width with a 2615mm (103.0 inches) wheelbase that brings about a total of 1283kg (2828.5 lbs) of unladen weight. The Focus ST 170 comes standard with 215/45 ZR17 W front tyres and 215/45 ZR17 W rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1988 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 127kW |
| Power RPM | 7000 |
| Torque | 196Nm |
| Torque RPM | 5500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | 8.8 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 55 |
| Fuel Type | Premium Unleaded |
| e10 Compatible | - |
| CO2 Combined | 212 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/45 ZR17 W |
| Tyre Rear | 215/45 ZR17 W |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1430 |
|---|---|
| Vehicle Length (mm) | 4152 |
| Vehicle Width (mm) | 1699 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2615 |
| Turning Circle (m) | 10900 |
| Unladen Weight (kg) | 1283 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1640 |
| Track Front (mm) | 1494 |
| Track Rear (mm) | 1487 |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 3 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2005-05-12 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
