Overview

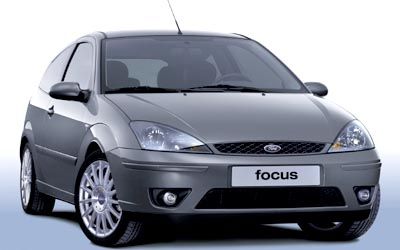

The 2002 Ford Focus ST 170 is a front-wheel drive, 3-door Hatchback that was released to the Australian market on 4th January 1970. The Ford Focus is regarded as a small car built in Germany and when it was new had prices starting at $0.
This Ford Focus is powered by a 2.0L 4-cylinder engine that has 127 kW of power (at 7000 rpm) and 196 Nm of torque (at 5500 rpm) via a Six-speed Manual transmission. It has a 55L fuel tank
The Ford Focus measures 1430mm (56.3 inches) in height, 4152mm (163.5 inches) in length, 1699mm (66.9 inches) in width with a 2615mm (103.0 inches) wheelbase that brings about a total of 1283kg (2828.5 lbs) of unladen weight. The Focus ST 170 comes standard with 215/45 ZR17 W front tyres and 215/45 ZR17 W rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | MULTI-POINT INJECTION |
|---|---|
| Size (cc) | 1989 |
| Size (L) | 2.0L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 16 |
| Power | 127kW |
| Power RPM | 7000 |
| Torque | 196Nm |
| Torque RPM | 5500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Multi-Link |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 9.5 |
| Fuel Extra Urban (L/100km) | 6.6 |
| Tank Size (L) | 55 |
| Fuel Type | Premium Unleaded |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 215/45 ZR17 W |
| Tyre Rear | 215/45 ZR17 W |
| Front Rim Size | 7x17 |
| Rear Rim Size | 7x17 |
| Vehicle Height (mm) | 1430 |
|---|---|
| Vehicle Length (mm) | 4152 |
| Vehicle Width (mm) | 1699 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2615 |
| Turning Circle (m) | 10900 |
| Unladen Weight (kg) | 1283 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 1640 |
| Track Front (mm) | 1494 |
| Track Rear (mm) | 1487 |
| Towing Capacity Brake (kg) | - |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | Germany |
|---|---|
| Number of Doors | 3 |
| Seats | 5 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2003-04-30 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
