Overview

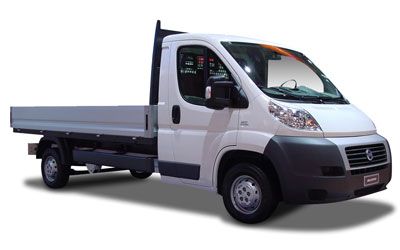

The 2012 Fiat Ducato Base is a front Single Cab Chassis that was released to the Australian market on 32nd February 2012 classified as a -. The Fiat Ducato is regarded as a single cab chassis built in Italy with prices from a dealer as a used car starting at $47,990.
The Fiat Ducato is a front 2 door with 2 seats, powered by a 2.3L 4 engine that has 96 kW of power (at 3600 rpm) and 320 Nm of torque (at 1800 rpm) via a Six-speed Manual. It has a 90L fuel tank.
The Fiat Ducato measures 2254mm (88.7 inches) in height, 5763mm (226.9 inches) in length, 2050mm (80.7 inches) in width with a 3800mm (149.6 inches) wheelbase that brings about a total of 0kg (0.0 lbs) of unladen weight. The Ducato Base comes standard with 225/75 R front tyres and 225/75 R rear tyres. It has a 36 month, 200,000kmkm warranty.
The 2012 Fiat Ducato Base has a undefinedmm ground clearance with a 2500kg braked and 1000kg unbraked towing capacity.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2287 |
| Size (L) | 2.3L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 96kW |
| Power RPM | 3600 |
| Torque | 320Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 6 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | strut |
| Suspension Rear | beam |
| Steering Mechanism | HYDRAULIC POWER STEERING |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | 0 |
| Fuel Extra Urban (L/100km) | 0 |
| Tank Size (L) | 90 |
| Fuel Type | diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/75 R |
| Tyre Rear | 225/75 R |
| Front Rim Size | 6x16 |
| Rear Rim Size | 6x16 |
| Vehicle Height (mm) | 2254 |
|---|---|
| Vehicle Length (mm) | 5763 |
| Vehicle Width (mm) | 2050 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3800 |
| Turning Circle (m) | 14280 |
| Unladen Weight (kg) | 0 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 4005 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 2500 |
| Towing Capacity Unbraked (kg) | 1000 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Italy |
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | 22500 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 200 |
| Warranty Months | 36 |
| Discontinued Date | 2012-03-31 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | EU5 |
