Overview

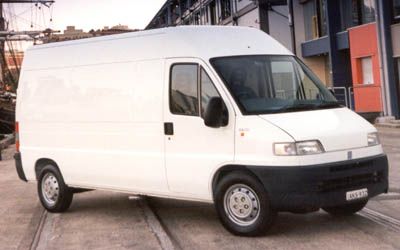

The 2003 Fiat Ducato Base is a front-wheel drive, 4-door Panel Van that was released to the Australian market on 4th August 2002. The Fiat Ducato is regarded as a Van over 3.5t built in Italy and when it was new had prices starting at $42,000.
This Fiat Ducato is powered by a 2.8L 4-cylinder engine that has 94 kW of power (at 3600 rpm) and 300 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The Fiat Ducato measures 2470mm (97.2 inches) in height, 5599mm (220.4 inches) in length, 2024mm (79.7 inches) in width with a 3700mm (145.7 inches) wheelbase that brings about a total of 2020kg (4453.3 lbs) of unladen weight. The Ducato Base comes standard with 205/75 R15 front tyres and 205/75 R15 rear tyres. It has a 36 month, 180,000 km warranty.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2800 |
| Size (L) | 2.8L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 94kW |
| Power RPM | 3600 |
| Torque | 300Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/75 R15 |
| Tyre Rear | 205/75 R15 |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 2470 |
|---|---|
| Vehicle Length (mm) | 5599 |
| Vehicle Width (mm) | 2024 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3700 |
| Turning Circle (m) | 13700 |
| Unladen Weight (kg) | 2020 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3510 |
| Track Front (mm) | 1720 |
| Track Rear (mm) | 1720 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Italy |
|---|---|
| Number of Doors | 4 |
| Seats | 2 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 180 |
| Warranty Months | 36 |
| Discontinued Date | 2003-11-09 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
