Overview

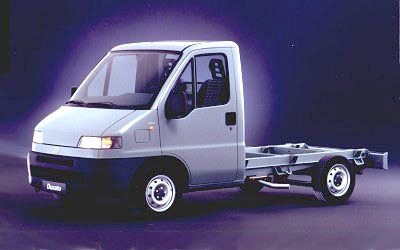

The 2002 Fiat Ducato Base is a front-wheel drive, Single Cab Chassis that was released to the Australian market on 4th August 2002. The Fiat Ducato is regarded as a Truck built in Italy and when it was new had prices starting at $38,000.
This Fiat Ducato is powered by a 2.8L 4-cylinder engine that has 93 kW of power (at 3600 rpm) and 300 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The Fiat Ducato measures 2150mm (84.6 inches) in height, 5681mm (223.7 inches) in length, 2020mm (79.5 inches) in width with a 3700mm (145.7 inches) wheelbase that brings about a total of 1830kg (4034.5 lbs) of unladen weight. The Ducato Base comes standard with 205/70 R15 front tyres and 205/70 R15 rear tyres. It has a 36 month, 100,000 km warranty.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO DIESEL COMMON RAIL |
|---|---|
| Size (cc) | 2800 |
| Size (L) | 2.8L |
| Cylinders | 4 |
| Camshaft | Dual Overhead Cam |
| Valves/Ports per Cylinder | 8 |
| Power | 93kW |
| Power RPM | 3600 |
| Torque | 300Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | Strut |
| Suspension Rear | Beam |
| Steering Mechanism | - |
| Drive | front |
| Fuel Combined (L/100km) | - |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 80 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | - |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 205/70 R15 |
| Tyre Rear | 205/70 R15 |
| Front Rim Size | 6x15 |
| Rear Rim Size | 6x15 |
| Vehicle Height (mm) | 2150 |
|---|---|
| Vehicle Length (mm) | 5681 |
| Vehicle Width (mm) | 2020 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 3700 |
| Turning Circle (m) | 13700 |
| Unladen Weight (kg) | 1830 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 3300 |
| Track Front (mm) | 1720 |
| Track Rear (mm) | 1720 |
| Towing Capacity Brake (kg) | 2000 |
| Towing Capacity Unbraked (kg) | - |
| Country Of Origin | Italy |
|---|---|
| Number of Doors | 2 |
| Seats | 2 |
| Service Interval KMs | - |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2003-04-15 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
