Overview

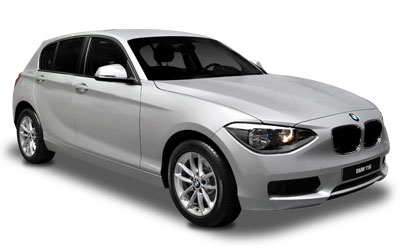

The 2014 BMW 1 Series M SPORT is a rear 5d Hatchback that was released to the Australian market on 112th April 2014 classified as a F20. The BMW 1 Series is regarded as a 5d hatchback built in Germany with prices from a dealer as a used car starting at $46,700.
The BMW 1 Series is a rear 5 door with 5 seats, powered by a 1.6L 4 engine that has 125 kW of power (at 4800 rpm) and 250 Nm of torque (at 1500 rpm) via an Eight-speed Automatic. BMW claims the 1 Series M SPORT uses 5.8L/100km of premium unleaded in the combined city and highway cycle while putting out 134g of CO2. It has a 52L fuel tank, meaning it should be able to travel 897km per full tank.
The BMW 1 Series measures 1421mm (55.9 inches) in height, 4239mm (166.9 inches) in length, 1765mm (69.5 inches) in width with a 2690mm (105.9 inches) wheelbase that brings about a total of 1284kg (2830.7 lbs) of unladen weight. The 1 Series M SPORT comes standard with 225/40 R front tyres and 245/35 R rear tyres. It has a 36 month, unlimited kmkm warranty.
The 2014 BMW 1 Series M SPORT has a undefinedmm ground clearance
The BMW 1 Series has received a 5 star rating from ANCAP.
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | TURBO PETROL DIRECT INJECTION |
|---|---|
| Size (cc) | 1598 |
| Size (L) | 1.6L |
| Cylinders | 4 |
| Camshaft | DUAL OVERHEAD CAM |
| Valves/Ports per Cylinder | 16 |
| Power | 125kW |
| Power RPM | 4800 |
| Torque | 250Nm |
| Torque RPM | 1500 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 8 SP AUTOMATIC |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | strut |
| Suspension Rear | multi-link |
| Steering Mechanism | POWER STEERING |
| Drive | rear |
| Fuel Combined (L/100km) | 5.8 |
|---|---|
| Fuel Urban (L/100km) | 7.4 |
| Fuel Extra Urban (L/100km) | 4.8 |
| Tank Size (L) | 52 |
| Fuel Type | premium unleaded |
| e10 Compatible | - |
| CO2 Combined | 134 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | DISC - VENTILATED |
|---|---|
| Brake Rear | DISC |
| Tyre Front | 225/40 R |
| Tyre Rear | 245/35 R |
| Front Rim Size | 7.5x18 |
| Rear Rim Size | 8x18 |
| Vehicle Height (mm) | 1421 |
|---|---|
| Vehicle Length (mm) | 4239 |
| Vehicle Width (mm) | 1765 |
| Ground Clearance (mm) | - |
| Wheelbase (mm) | 2690 |
| Turning Circle (m) | 0 |
| Unladen Weight (kg) | 1284 |
| Gross Combined Weight (kg) | 0 |
| Gross Vehicle Weight (kg) | 1845 |
| Track Front | - |
| Track Rear | - |
| Towing Capacity Brake (kg) | 0 |
| Towing Capacity Unbraked (kg) | 0 |
| Compliance Plate Location | - |
|---|---|
| Country Of Origin | Germany |
| Number of Doors | 5 |
| Seats | 5 |
| Service Interval KMs | 0 |
| Service Interval Months | 0 |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | - |
| Warranty Months | 36 |
| Discontinued Date | 2014-07-02 |
| ANCAP Rating | 5 |
|---|---|
| Euro Air Pollution Standard | EU5 |
